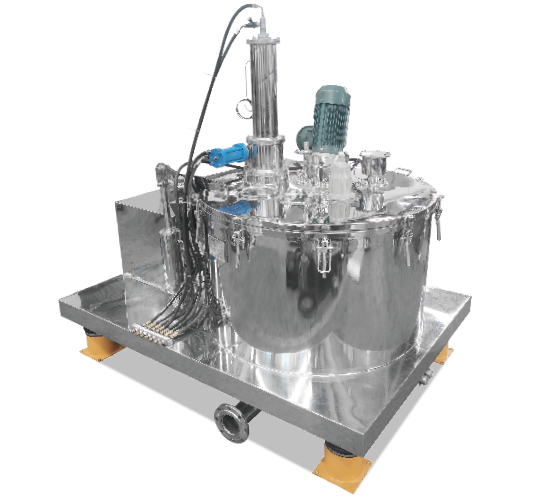

PGZ Plate-type Automatic Scraper Centrifuge
Product Description
Blovebird PGZ series of centrifuges can be set according to the requirements of using the program, automatically finish feeding, separating, washing, dehydration, discharge process, which can realize remote control, high degree of automation, large quantity, suitable for containing granular and medium size of solid phase suspension of solid-liquid separation, can also be used for solid-liquid separation of fibrous materials.
Under the automatic scraper discharge centrifuge USES the flat structure and liquid damping suspension technology, independent type inclined dish cloth system, flip and online cleaning device, surface treatment in accordance with the requirements of GMP and interactive man-machine interface, control safety protection function: over shock protection, over-current protection, material layer control mechanical and electrical interlock protection device.
Simple Structure
Easy to Clean
Airtight Operation
Configuration Optional
Application Industry
Application Cases
Model：PGZ800
Separation Material: Suspension → Product: Lithium Chloride
Operating Principle
The Blovebird PGZ scraper bottom discharge centrifuge is a vertical automatic filter centrifuge. The control program opens the feed valve and waits for the separated material to enter the centrifuge through the feed tube feeding tray. Under the action of centrifugal force generated by high-speed rotation, the liquid phase is filtered through the filter medium, and discharged through the outlet pipe after filtration, while the solid phase is trapped on the press cloth. The material level detector detects the position of the material layer and automatically stops feeding when the rotary drum filter cake reaches the set amount of material. The filter cake is then washed and dehydrated according to customer requirements. After the filter cake meets the requirements of separation, the program control centrifuge reduces to the scraper speed, the scraper device under the control of liquid (gas) moving device will scrape down the filter cake, and discharged through the lower outlet of the centrifuge.

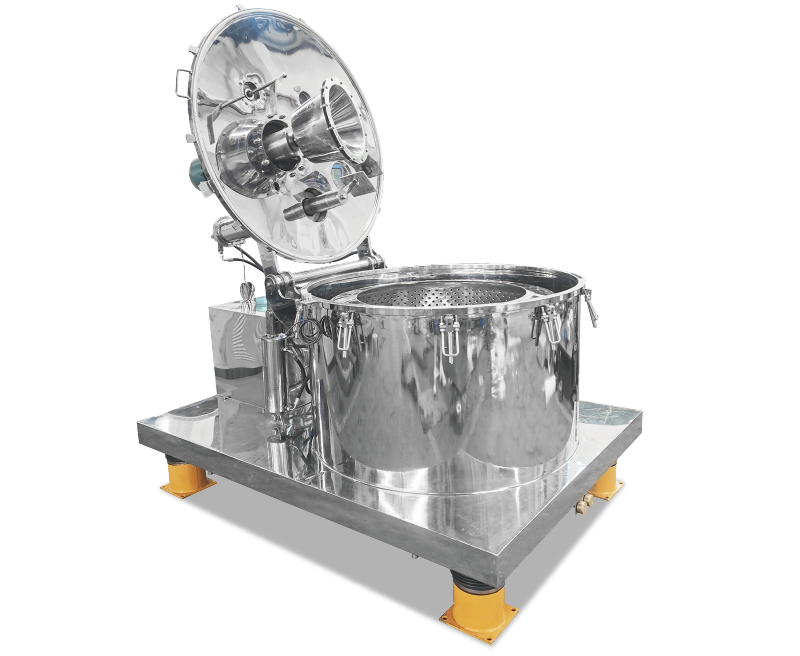

Main Features
Large Clamshell or Flat Cover Structure
Large clamshell or flat cover structure, easy to clean and maintain.
Full Closed Structure
Full closed structure, inside the machine, bearing cavity and scraper cavity filled with nitrogen protection.
High Polishing Precision
High polishing precision, up to 0.2-0.4um, smooth and simple internal structure, no dead Angle.
Spindle Seal
The spindle is sealed reliably to ensure no leakage.
The Online Cleaning Device
The online cleaning device can effectively clean the inside of the centrifuge without dead Angle.
High-temperature Sterilization
The machine can be sterilized at high temperature.
PLC Frequency Conversion Control System
PLC frequency conversion control system, energy consumption or feedback braking.
Fully Enclosed Housing
The transmission mechanism adopts a fully enclosed housing to prevent dust pollution in the transmission process.

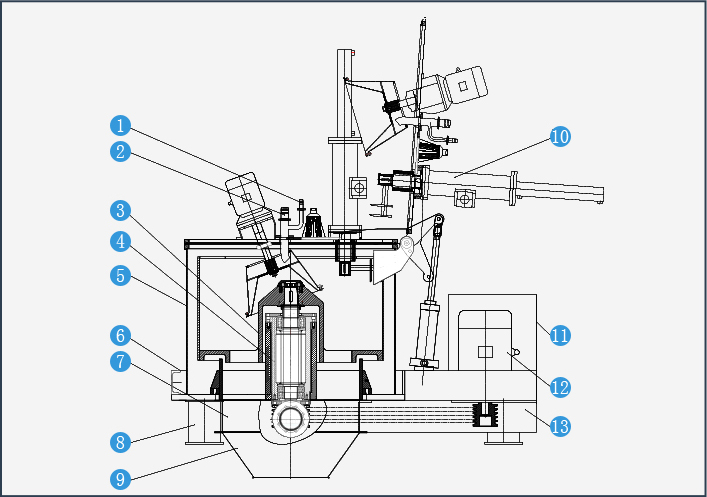

① Washing Pipe
⑧ Vibration Isolator
② Side Feed Pipe
⑨ Receiving Hopper
③ Rotating Barrel
⑩ Scraper System
④ Transmission
⑪ Motor Protection Shell
⑤ Shell Cylinder
⑫ Motor
⑥ Plate Portion
⑬ Belt Shield Shell
⑦ Discharge Hopper
Product Configurations
① Multiple materials available (304/316L/2205/titanium alloy/Hastelloy/zirconium, etc.).
② Optional interface form (tower interface/flange connection).
③ Optional motor brand, energy efficiency level, explosion-proof.
④ Optional cabinet explosion-proof, optional inverter, electronic component brand.
⑤ Optional pipe valve execution mode (electric/pneumatic/hydraulic).
⑥ Optional discharge valve.
⑦ Optional big flap, small flap structure.
⑧ Optional GMP online cleaning system.
⑨ Optional feeding mode (inclined tube feeding/inclined disc distributor feeding).
⑩ Optional vibration protection, open cover protection.
⑪ Optional oxygen content detection, nitrogen filling protection system.
| Model | Drum Diameter(mm) | Speed(r/min) | Max.RCF | Drum Volume(L) | Load Limited(kg) | Power of Motor(kw) | Weight(kg) | Dimension(mm) |
| PGZ600 | 600 | 1500 | 756 | 42 | 60 | 4 | 1200 | 1400X900X1450 |
| PGZ800 | 800 | 1200 | 645 | 100 | 135 | 7.5 | 2500 | 2000X1300X2100 |
| PGZ1000 | 1000 | 1000 | 651 | 155 | 200 | 15 | 3300 | 2100X1500X2200 |
| PGZ1250 | 1250 | 955 | 638 | 370 | 480 | 22 | 5000 | 2500X1800X2700 |
| PGZ1500 | 1500 | 870 | 606 | 610 | 800 | 37 | 7000 | 2600X2150X2650 |
| PGZ1600 | 1600 | 870 | 646 | 800 | 1000 | 37 | 8500 | 3000X2200X2800 |
