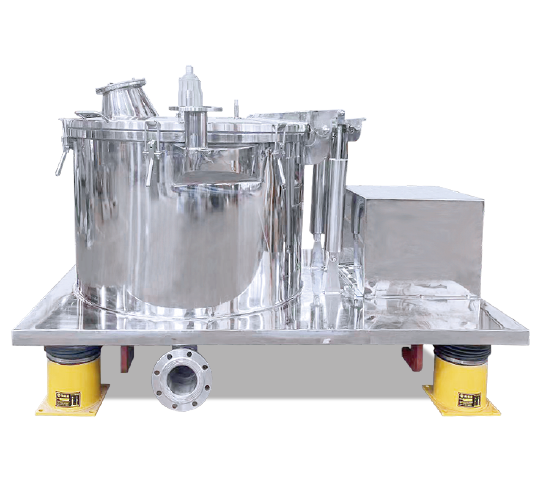

PD Plate-type Bag-lifting Centrifuge
Product Description
Blovebird PD series centrifuge is bag-lifting top discharge, intermittent operation of filtering centrifuge, the series of centrifuge has simple structure, reliable performance, convenient operation and maintenance, and filtering time can grasp, residue can fully wash, solid phase is not easy to damage, the advantages of strong adaptability, due to the lower discharge reduced the labor intensity, widely used in chemical industry, light industry, food, pharmacy, metallurgy and other departments.
Simple Structure
Easy to Clean
Airtight Operation
Configuration Optional
Application Industry
Application Cases
Model：PD800
Separation Material: Ammonium Sulfate Solution → Product: Ammonium Sulfate
Operating Principle
Under the action of centrifugal force, the materials reach the basket wall, where the liquid phase passes through the filtering medium covered on the basket wall and then flows through the pores on the wall to the inner wall of the enclosure, then drops off to the bottom tray and is discharged out via the liquid discharge port. While the solid matters are retained inside the basket and fully washed to complete the solid-liquid separation. After the equipment is shut down, open the flippable cover, remove the filter bag with special lifting appliances, transfer it to the unloading area for discharging. After that, install the basket lip and filter bag back, lock the basket lip, close the flippable cover and lock it, and at this time, the next circulation can be started.
Main Features
Reasonable Structural Design
Reasonable structural design, effective elimination of sanitary dead spots, smooth filtering of structural parts, polished surface, external structural parts, fasteners and drum are made of stainless steel. The shell is clamshell type, which can thoroughly clean the shell of the centrifuge and the sandwich space of the drum.
Online Cleaning System
An online cleaning system can be optionally configured to clean the centrifuge online, cleaning the inner wall of the centrifuge shell, the inner and outer surfaces of the drum, the surface of the liquid collection tank and other invisible parts of the centrifuge.
Nitrogen Protection System
A nitrogen protection system can be optionally configured to ensure that the inner cavity of the centrifuge is isolated from the external air.
Closed Structure
Closed structure, silicone rubber or fluorine rubber seals.It can meet the requirements of airtight explosion protection and is suitable for toxic, flammable and explosive occasions.
Inverter Start
Inverter is used to start, smooth start, separation factor adjustable.

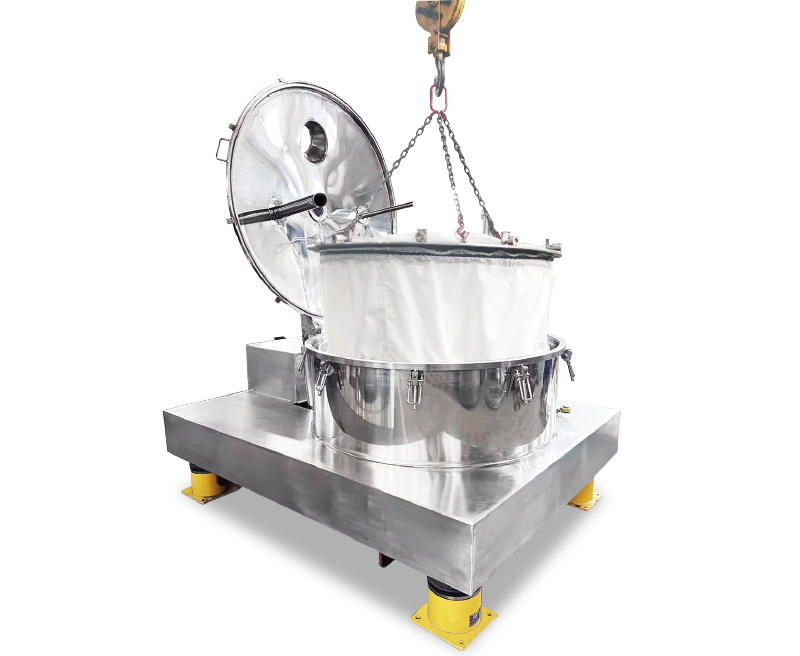

Lifting Bag Unloading
Lifting bag unloading, low labor intensity, high efficiency.
Simple Structure
Simple structure, convenient operation and maintenance.
Grains
Grains are not easily broken.
Strong Versatility
Strong versatility and wide application range.

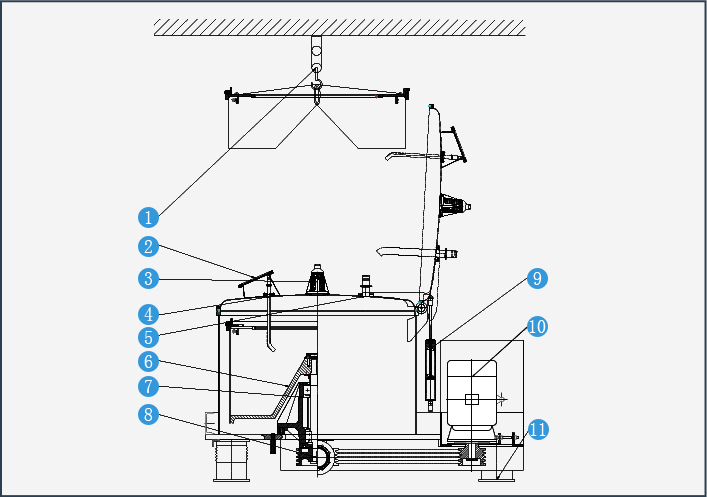

① The Lifting Device
⑦ Transmission
② Observation Mirror
⑧ Drain Pipe
③ Explosion Proof Light
⑨ Open Institutions
④ Washing Pipe
⑩ Motor
⑤ Feeding Pipe
⑪ Vibration Isolator
⑥ Rotating Barrel
Product Configurations
① Multiple materials available (304/316L/2205/titanium alloy/Hastelloy/zirconium, etc.).
② Optional filter bag material (polypropylene/polyester/nylon), mesh size.
③ Optional interface form (tower interface/flange connection).
④ Optional motor brand, energy efficiency level, explosion-proof.
⑤ Optional cabinet explosion-proof, optional inverter, electronic components brand.
⑥ Optional opening form (spring cylinder/oil cylinder/air cylinder).
⑦ Optional GMP online cleaning system.
⑧ Optional vibration protection, open cover protection.
⑨ Optional oxygen content detection, nitrogen filling protection system.
⑩ Optional On-site explosion-proof button.
| Model | Drum Diameter(mm) | Speed(r/min) | Max.RCF | Drum Volume(L) | Load Limited(kg) | Power of Motor(kw) | Weight(kg) | Dimension(mm) |
| PD800 | 800 | 1200 | 645 | 100 | 140 | 7.5 | 1500 | 1800X1200X1350 |
| PD1000 | 1000 | 1000 | 650 | 155 | 200 | 11 | 2500 | 2050X1500X1350 |
| PD1250 | 1250 | 970 | 658 | 370 | 500 | 22 | 3300 | 2000X1500X1400 |
| PD1500 | 1500 | 870 | 621 | 695 | 830 | 30 | 5500 | 2600X2200X1850 |
| PD1600 | 1600 | 870 | 678 | 800 | 900 | 37 | 7500 | 3000X2200X1980 |
| PD1800 | 1800 | 720 | 522 | 910 | 1200 | 45 | 10000 | 3200X2550X2150 |
