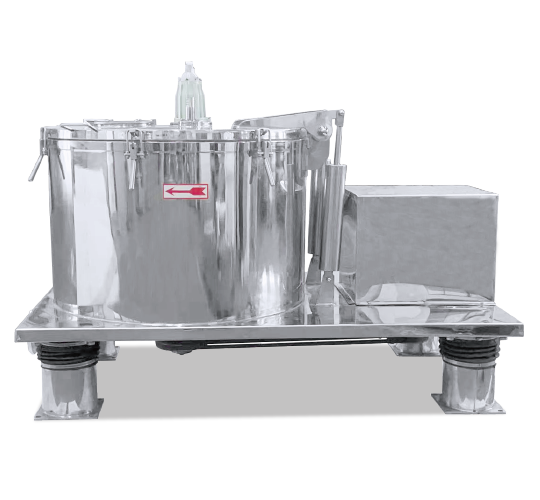

PB Plate-type Top Discharge Centrifuge
Product Description
PB series is designed according to environmental protection requirements of the fully enclosed manual top discharge filter centrifuge, with a wide range of materials applicable. High temperature, high viscosity, small particle size, a variety of difficult to separate the suspension, fibrous materials, etc. have good applicability, the minimum separation of particle size 1μm.
Simple Structure
Easy to Clean
Airtight Operation
Configuration Optional
Application Industry
Application Cases
Model：PB600
Separation Material: Suspension → Product: Powdered Solid
Operating Principle
When working, the suspension to be separated (or the material that needs to be deliquored, the finished article) will be added to the centrifuge drum with filter media. Under the action of the centrifugal force field, the suspension moves to the wall of the drum. Among them, the solid particles are blocked by the filter medium and retained to form a filter cake layer; while the liquid and some of the finer particles pass through the gap between the filter medium and the filter cake, and are discharged from the drum through the small holes opened on the drum. The separation of solid and liquid phases is implemented. According to different separation processes, after the filter cake layer is formed, washing and replacement liquids can be added to wash and replace the filter cake, and then the final spin-drying and deliquoring separation until the separation requirements are reached, and the speed is reduced or Stop, use manual or mechanical means to unload the filter cake from the drum.

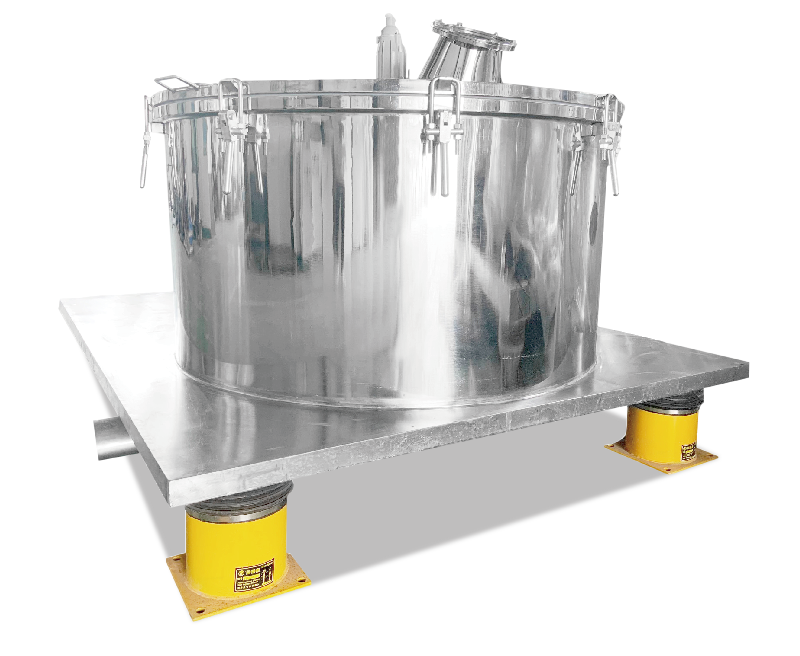

Main Features
Reasonable Structural Design
Reasonable structural design, effective elimination of sanitary dead spots, smooth transition of structural parts, polished surface, external structural parts, fasteners and drum are made of stainless steel. The shell is clamshell type, which can thoroughly clean the shell of the centrifuge and the sandwich space of the drum.
Online Cleaning System
The shell clamshell is equipped with feeding pipe, washing pipe, observation mirror and lighting hole. An online cleaning system can be optionally configured to clean the invisible parts inside the centrifuge, such as the inner wall of the centrifuge shell, the inner and outer surfaces of the drum, and the surface of the liquid collecting tank, to ensure the cleanliness requirements.
Flat Structure
The frame is of flat plate structure, which reduces the center of gravity of the machine and reduces the installation space. The flat plate frame can also be used as the operating platform, making it more convenient to operate.
Inverter Start
It can be started by frequency converter with stable start and adjustable separation factor, non-contact energy consumption braking system, anti-static belt transmission: airframe airtight structure, silicone rubber or fluororubber seals.It can meet the requirements of sealing and explosion-proof, suitable for the application in toxic, flammable and explosive occasions.
Integral Welded Structure
The frame and housing are welded as a whole, with high acceptance strength.
Simple Structure
Simple structure, convenient operation and maintenance.
Liquid Damper
Equipped with liquid damping shock absorber, it can eliminate vibration more effectively and simplify daily maintenance.
Strong Versatility
Strong versatility and wide application range. It can be used for the separation of solid particulate suspensions and fibrous materials.
Grain
The grain is not easily broken.
The above configuration is divided into chemical industry and pharmaceutical industry, which can be selected according to specific requirements to meet the technical and economic requirements.

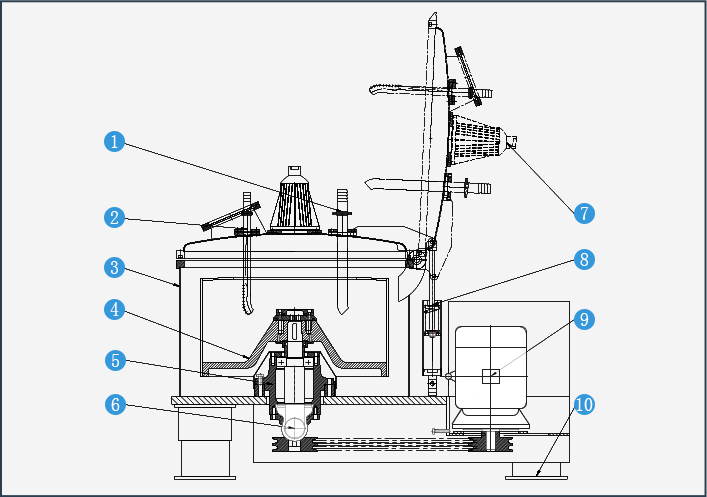

① Feeding Pipe
⑥ Drain Pipe
② Washing Pipe
⑦ Explosion Proof Light
③ Shell
⑧ Open Institutions
④ Rotating Barrel
⑨ Motor
⑤ Transmission
⑩ Vibration Isolator
Product Configurations
① Multiple materials available (304/316L/2205/titanium alloy/Hastelloy/zirconium, etc.).
② Optional filter bag material (polypropylene/polyester/nylon), mesh size.
③ Optional interface form (tower interface/flange connection).
④ Optional motor brand, energy efficiency level, explosion-proof.
⑤ Optional cabinet explosion-proof, optional inverter, electronic components brand.
⑥ Optional opening form (spring cylinder/oil cylinder/air cylinder).
⑦ Optional GMP online cleaning system.
⑧ Optional vibration protection, open cover protection.
⑨ Optional oxygen content detection, nitrogen filling protection system.
⑩ Optional On-site explosion-proof button.
| Model | Drum Diameter(mm) | Drum Speed(r/min) | Max.RCF | Drum Volume(L) | Load Limited(kg) | Power of Motor(kw) | Weight(kg) | Dimension(mm) |
| PB600 | 600 | 1500 | 756 | 42 | 60 | 3 | 1000 | 1400X900X1050 |
| PB800 | 800 | 1200 | 645 | 100 | 140 | 5.5 | 1500 | 1800X1200X1350 |
| PB1000 | 1000 | 1000 | 560 | 140 | 200 | 7.5 | 2000 | 2000X1500X1400 |
| PB1250 | 1250 | 970 | 645 | 370 | 500 | 11 | 3000 | 2300X1700X1500 |
| PB1500 | 1500 | 860 | 621 | 695 | 830 | 22 | 4500 | 2600X2200X1850 |
