MY Horizontal Screen Scroll Centrifuge For Experiment
Product Description
The centrifuge series is an improved version of LWL inverted model, which solves the shortcomings of LWL series. Due to the problem of handling capacity, the differential, lubrication system and other devices were simplified. Easy to carry, and can achieve the same functions as LWL series, used in enterprises and institutions research and development laboratory research and development work.
Quick Disassembly
Compact Design
Smooth Operation
Simple Structure
Application Industry
Application Cases
Model：MY150
Separation Material: Fish Meal Suspension → Product: Fish Meal Solid
Operating Principle
The suspension enters the front end of the spiral from the feed pipe, and is initially accelerated by the airflow of the drum and enters the drum. Under the action of the centrifugal force field, the liquid phase in the slurry is separated through the screen set on the rotating wall, and the solid phase particles are retained in the drum. At the same time, the solid phase particles in the drum move from the small end of the drum to the large end of the drum under the action of centrifugal force and the differential speed between the spiral and the drum. During this movement, due to the increase in the rotating diameter, the centrifugal force is rapidly increased, and the solid phase changes from a high moisture content solid phase at the initial entry to a low moisture content solid phase when it is discharged from the drum, there by realizing automatic and continuous separation of the solid and liquid phases.

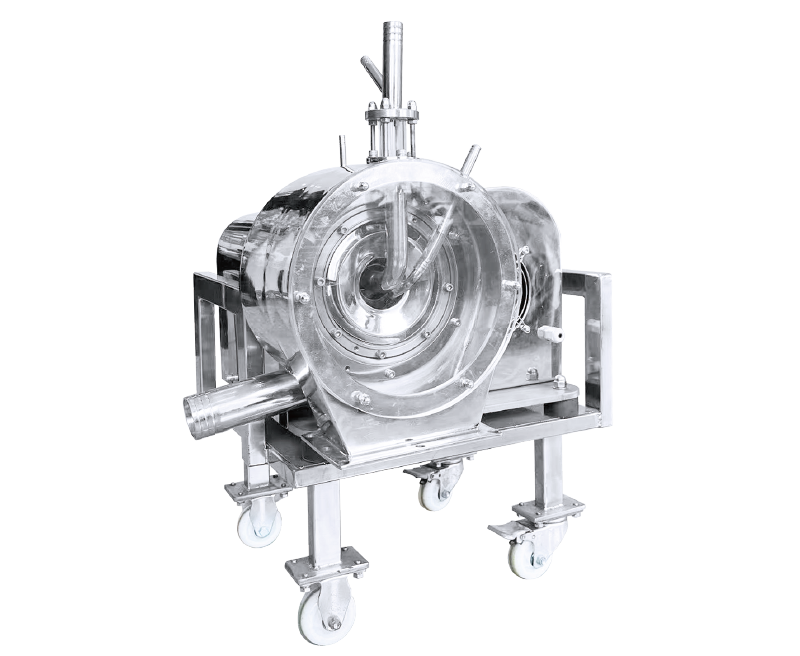

Main Features
Corrosion Resistant Material
Drum, screw and other main parts can be corrosion-resistant stainless steel, titanium alloy manufacturing.
Special Filter Screen
Special filter, filter thickness is 0.5 mm, 10-250 mesh sieve density optional, longer service life.
Stepless Speed Regulation
Stepless speed regulation of drum speed.
Circulating Lubrication
Simple and reliable circulating oil lubrication method.
Other System
Simple and reliable way of circulation lubrication, including pressure regulation, oil filter and water cooling system.
Safety Protection
Safety protection: speed detection, oil free protection, motor overload overheat protection, spiral zero differential protection.
Successful Application Cases
Wide Application
MY series horizontal small screen scroll centrifuge for experiment has been widely used in chemical industry, food, salt, mining, pharmaceutical and other industries. Like LWL series centrifuge, it has strong pertinence to material, so material analysis and corresponding experiment should be carried out in the selection process to determine its applicability and separation performance.
Metal Screen Porosity
MY series adopts screen filtering and spiral unloading method, and the minimum pore of the metal filter can be achieved to 0.05mm. Widely used in the separation of crystals and fibers. It plays a very important role in the small handling capacity or in determining material separation characteristics in many domestic enterprises.

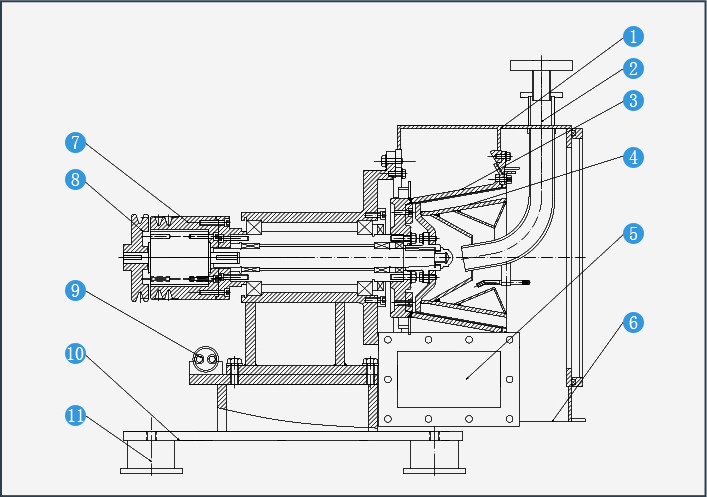

① Shell
⑦ Drum Pulley
② Feeding Pipe
⑧ Differential Pulley
③ Drum
⑨ Water Cooler
④ Spiral
⑩ Base
⑤ Liquid Outlet
⑪ Shock Absorber
⑥ Solid Outlet
Product Configurations
① Multiple materials available (304/316L/2205/titanium alloy/Hastelloy/zirconium, etc.).
② Optional interface form (tower interface/flange connection).
③ Optional motor brand, energy efficiency level, explosion-proof.
④ Optional cabinet explosion-proof, optional inverter, electronic component brand.
⑤ Optional screen style (laser screen/strip screen), material, mesh size.
⑥ Optional GMP requirements (stainless steel lining for the whole machine, screw and drum polishing).
⑦ Optional vibration protection, shaft temperature detection.
⑧ Optional oxygen content detection, nitrogen filling protection system.
| Model | Drum Diameter(mm) | Drum Speed(r/min) | Max.RCF | Processing Capacity (L/H) | Power of Motor(kw) | Weight(kg) | Overall Dimension(mm) |
| LWL150 | 150 | 5000 | 2098 | 50-300 | 1.5 | 120 | 550X500X450 |
