Blovebird Centrifuge

Centrifugal Sedimentation in Rotating Drum

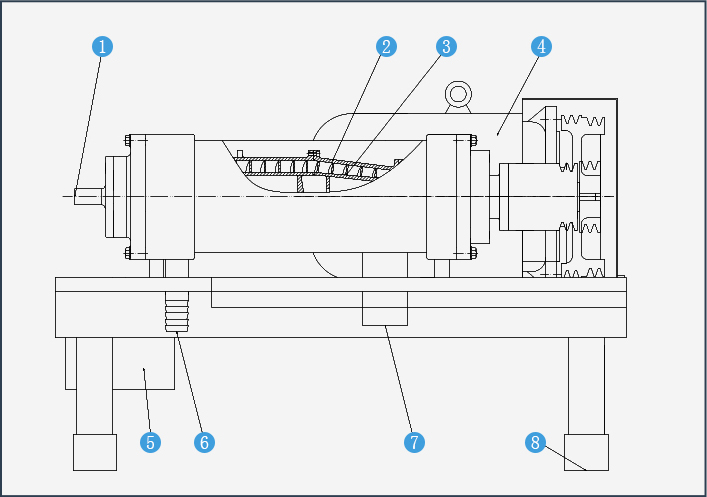

The core part consists of a cylindrical and conical rotating bucket. The force of the centrifuge makes the solid material deposited on the wall of the rotating drum.

Liquid Level Adjustment Via Retainer

A chuck for adjusting the depth of the liquid level is installed at the bottom of the drum. The clarified liquid flows along the spiral cylinder to the bottom, and then is collected in the liquid hopper and discharged from the machine drum. The depth of the clarified liquid in the drum can be changed to different Retainer to adjust.

Solid Conveying & Dehydration Factors

The spiral has the same shape and angle as the drum, and its rotation speed is slightly slower than the drum, so that the separated solid is pushed to the narrow cone end. Discharge from the drum. The degree of solid dehydration depends on many factors. In addition to the material itself, it also depends on the separation time of the solid in the centrifuge and the spiral cone angle of the conveying solid, and the differential speed between the spiral and the drum is also an important factor.

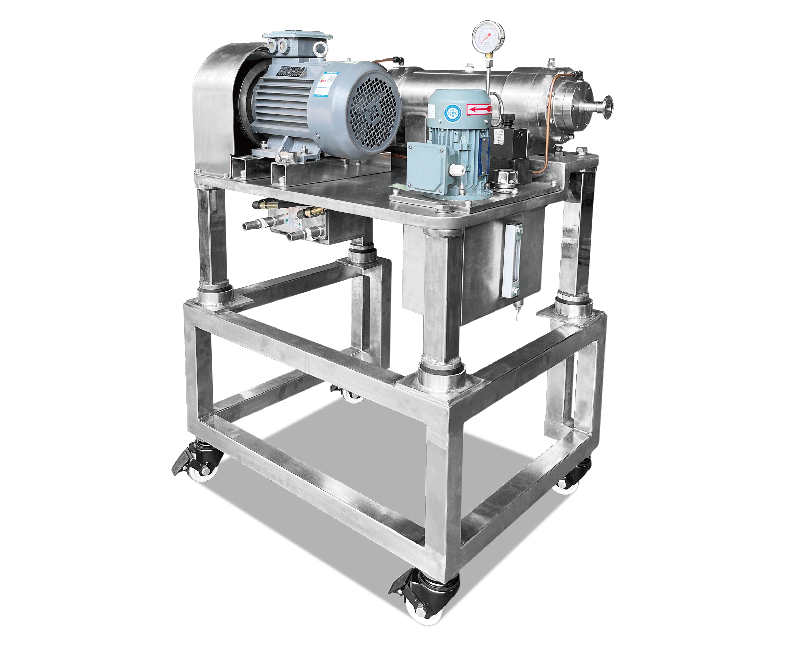

HY Centrifuges: Compact & Easy Maintenance

All HY series centrifuges are based on compact design and simple operation to ensure machine functions and fully meet user requirements. The number of components, including equipment required for assem-bly, is kept to a minimum, which ensures that the time required for product assembly is greatly increased. It only takes 30 minutes to disassemble and assemble deeply. Because the HY series centrifuge is easy to operate, the training time for the centrifuge is greatly reduced, and only daily centrifuge maintenance is required.

General Settling

Universal settling centrifuge.

Quick Disassembly

Quick disassembly and assembly-within 30 minutes.

Minimal Material Residue

Very little material residue, the gap between the spiral and the drum is less than 1mm.

Simple and Clear

Simple and clear control panel and operation.

Design

Compact design.

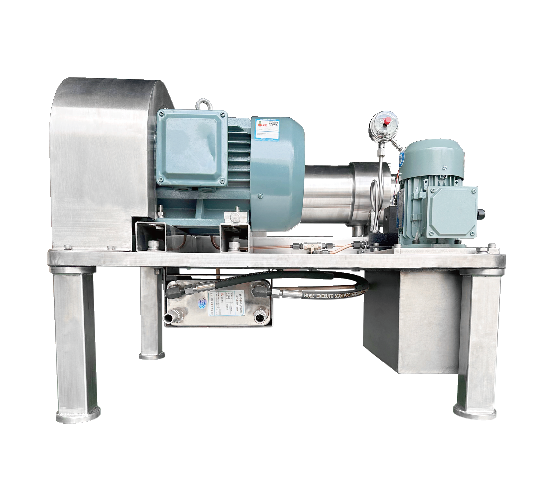

HY series high-performance decanter centrifuge is usually used in the food fermentation industry, fine chemical pharmacy and biotechnology industries. Except in the research and development department, the HY series centrifuge is also used to produce high-quality products with a flow rate of less than 500L/H. The HY series can also be used as a measuring instrument to record the two-phase flow characteristics of the test product and the torque change and power consumption of the spiral, and to modify the process technology from the flow behavior of the product.
