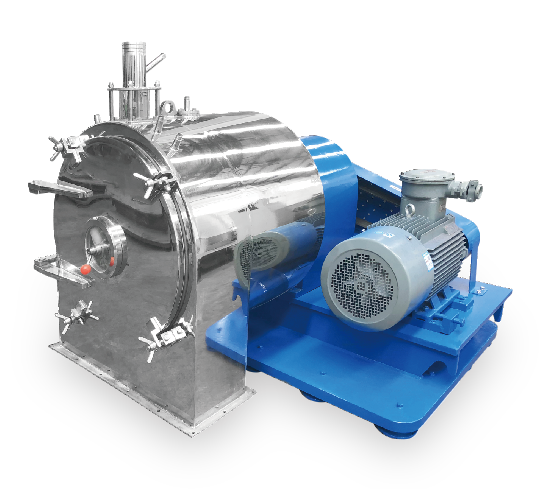

LWL Horizontal Screen Scroll Centrifuge
Product Description
Scroll centrifuge is an advanced solid-liquid separation equipment with low energy consumption, high precision, good separation effect and high degree of automation.
Quick Disassembly
Compact Design
General Filtration
Smooth Operation
Simple Structure
Application Industry

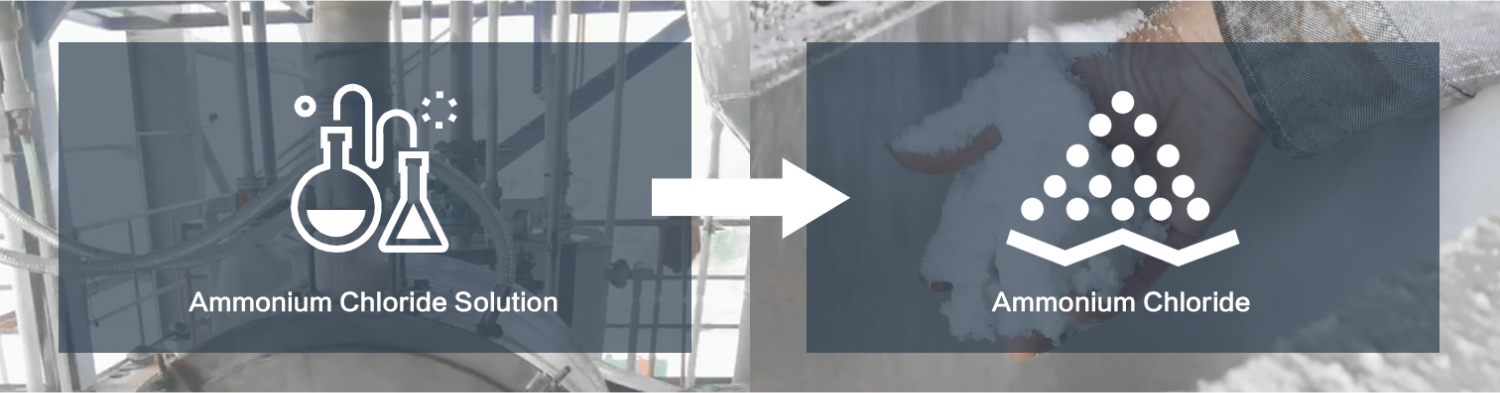

Application Cases
Model：LWL530
Separation Material: Ammonium Chloride Solution → Product: Ammonium Chloride
Operating Principle
Suspension flows into the spiral cavity via the feed pipe and enters the rotating drum through the nozzle at the screw’s cone end. Under centrifugal force, slurry liquid passes through the drum wall screen while solid particles are retained. Driven by centrifugal force and the speed difference between screw and drum, solids travel from the drum’s small end to its large end. Growing centrifugal force reduces solid moisture from inlet to discharge, achieving automatic continuous solid-liquid separation.
Special Equipment Improvement
Salt Extraction From Waste Liquid
Improvements made by Bhoumik in special equipment for extracting salt from waste liquids such as ammonium sulfate, ammonium chloride, ammonium thiocyanate, and sodium chloride.
Feed Pipe Device
The feeding pipe device is improved, the distribution is more uniform, and the equipment operation is more stable.
Lubrication System
The lubrication system is improved, the lubrication is more adequate and reasonable, and the service life of the bearing is increased.
Bearing Sealing System
Improved bearing sealing system, using labyrinth oil seal to prevent mother liquid from entering the lubrication system.
Wear Resistant Treatment
The drum spiral is treated with nitriding and wear-resistant, which has a longer life.
Discharge System
The discharge system is improved, and a scraper device is added to prevent the storage bin from accumulating.
① Inlet Pipe
⑩ Water Cooler
② Washing Tube
⑪ Damping Shock Absorber
③ Shell
⑫ Observation Window
④ Air Filter
⑬ Spiral
⑤ Differential
⑭ Screen Mesh
⑥ Swivel Joints
⑮ Drum
⑦ Drum Pulley
⑯ Liquid Outlet
⑧ Spiral Pulley
⑰ Solid Outlet
⑨ Cabinet
Main Features
Main parts such as drum and screw can be made of corrosion-resistant stainless steel or titanium alloy.
Special filter, the thickness of the filter reaches 0.5mm, and the service life is longer.
Stepless speed regulation of drum speed.
Spiral differential speed is adjustable: stepless or stepless speed regulation.
Simple and reliable circulation lubrication method, including pressure regulation, oil filtration and water cooling system.
Safety protection: speed detection, over-vibration protection, motor overload and overheat protection, spiral zero differential protection.
For high viscosity materials, a hydraulic differential can be selected, which is stable and reliable.
| Model | Drum Diameter(mm) | Drum Speed(r/min) | Max.RCF | Feeding(m3/h) | Power of Motor(kw) | Weight(kg) | Overall Dimension(mm) |
| LWL150 | 150 | 5000 | 2098 | 0.1 | 1.5 | 120 | 550X500X450 |
| LWL200 | 200 | 4000 | 1790 | 0.5-1.5 | 3 | 550 | 1120X1020X800 |
| LWL250 | 250 | 3500 | 1714 | 1.0-3.5 | 4 | 600 | 1120X1050X850 |
| LWL350 | 350 | 2900 | 1647 | 3.0-7 | 11 | 1200 | 1300X1200X1200 |
| LWL450 | 450 | 2600 | 1702 | 5.0-15 | 22 | 1800 | 1800X1500X1300 |
| LWL530 | 530 | 2200 | 1435 | 8.0-25 | 30 | 3000 | 2100X1700X1600 |
| LWL630 | 630 | 1850 | 1206 | 10-35 | 37 | 3200 | 2200X1850X1650 |
| LWL800 | 800 | 1500 | 1007 | 15-50 | 55 | 6000 | 2700X2300X2000 |

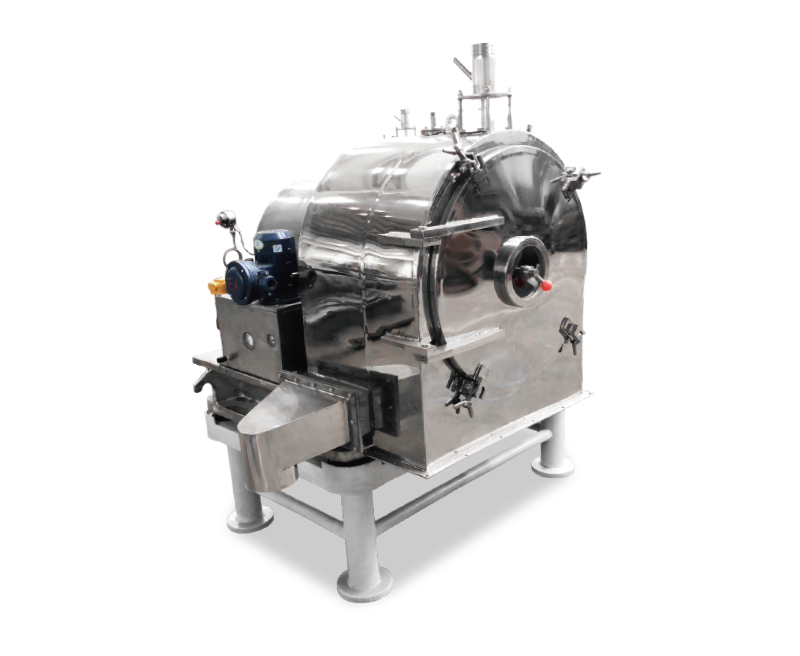

Centrifuge Advantages
■ Safe
● Over vibration protection
● Motor overload and overcurrent protection
● Flameproof protection
● Axle temperature detection
■ Efficient
● Continuous work and large processing capacity
● Easy maintenance and low failure rate
● Large pushing moment, no material blocking
● Low solid phase moisture content
■ Protecting Environment
● Low energy consumption
● High airtightness
● Variable frequency control stepless speed regulation
● Low vibration and low noise
Successful Application Cases of LWL
Horizontal screen scroll centrifuges have been widely used in chemical, food, salt, mining, pharmaceutical and other industries. However, due to its separation principle and structural characteristics, it is more targeted to materials. Material analysis and corresponding experiments should be carried out during the selection to determine its applicability and separation performance.
It is mainly suitable for material particles with larger particle size and no strict requirements for particle damage, such as fibers, plastic particles, and various crystals.
| Adipic Acid | Ammonium Thiosulphate | Naphthenic Sulfonic Acid Ester | Date Stones | Salt Cake |
| Ion Exchange Resin | Sodium Nitre | Polystyrene Alcohol | Arsenic Triazole | Sodium Chloride |
| Sodium Perborate | Sodium Thiosulphate | Ah-salt | Anth Racene | Nylon Chips |
| Copper Sulphate | Greaves | Iron Sulphate Hepta Hydrate | Sodium Phosphate | Potash |
| Rock Salt | Citric Acid | Tarterci Acid | Aminoacetic Acid | Sodium Chlorate |
| Oxalic Acid | Crystal Soda | Gun Powder | Aspirin | Sodium Sulphate |
| Potash Alum | Regenerated Rubber | Lactose | Polymethacrylate | Tin Sulphate |
| Ammonium Persulphate | Sodium Formate | Sodium Sulphite | Dinitro Methylarlin | Gypsum |
| Bisphenol | Polysyrene | Potash Solvent Residue | Silver Nitrate | Manganese Sulphate |
| Sodium Tetraborate | Trisodium | Ammonium Phosphate | Sodium Gluconate | Two Nirto Methylaniline |
| Extraction From Methanol | Urotropin | Borax | Disodium Phosphate | Ammonium Sulphate |
| Methyl Cellulose | Potassium Lore | Potassium Bica Rbonate | Ammonium Sulphate | Sodium Metaborate |
| Potassium Chloride | Zinc Sulphate | Hops From Dichlorc Methare | Calcium Formiate | Polyvinyl Chloride |
| Potassium Bichromate | Monosod lumphasphate | Potassium Sulphate | Potassium Pensuphate | Sodium Ca Rbonate |
| Sodium Nitrate | Polyethylene | Fungal Mycel |

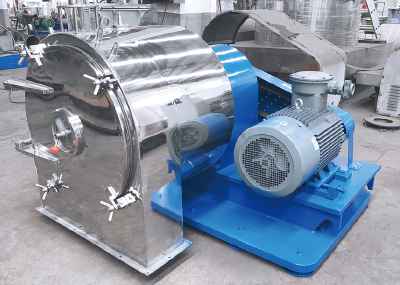

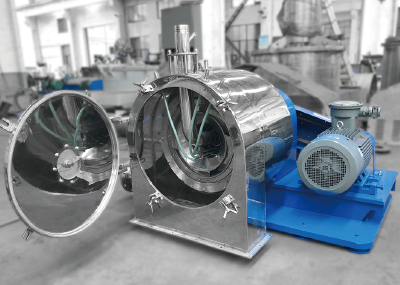

Product Configurations
① Multiple materials available (304/316L/2205/titanium alloy/Hastelloy/zirconium, etc.).
② Optional interface form (tower interface/flange connection).
③ Optional motor brand, energy efficiency level, explosion-proof.
④ Optional cabinet explosion-proof, optional inverter, electronic component brand.

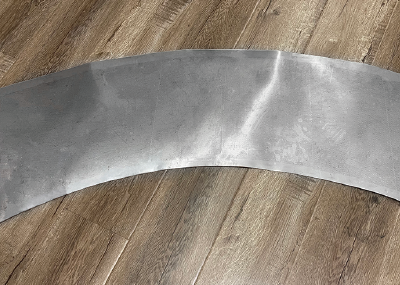

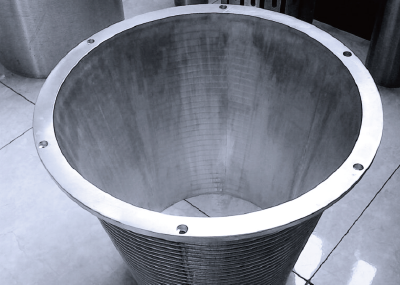

⑤ Optional screen style (laser screen/strip screen), material, mesh size.
⑥ Optional drum cone angle (0°/10°/20°).
⑦ Optional GMP requirements (stainless steel lining for the whole machine, screw and drum polishing).
⑧ Optional feeding method (feeding pipe feeding/screw conveyor feeding).
⑨ Optional vibration protection, shaft temperature detection.
⑩ Optional differential form (cycloidal differential/planetary differential/hydraulic differential).
⑪ Optional oxygen content detection, nitrogen filling protection system.
