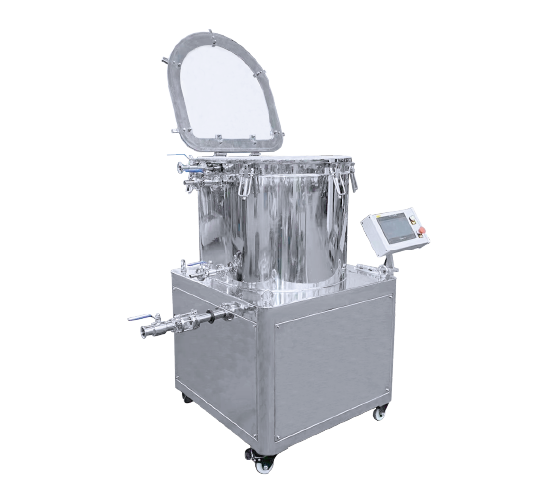

VTS Solventless Extraction Centrifuge


Product Description
VTS solventless extraction centrifuge can be used to separate cannabinoids and terpene-rich trichoids from biomass. This series of centrifuge extracts the active ingredients in plants through built-in programs. It adopts the flat bottom cylinder structure with larger volume, higher purity and pollution-free structural design.
The machine adopts a closed structure, the sealing place adopts the silicone and the PTFE seal;; Equipped with an explosion-proof motor, inverter, PLC, touch screen and other devices can achieve the requirements of sealing and explosion-proof.

Quick Disassembly

Easy to Clean

Airtight Operation

GMP Compliance

Configuration Optional

Application Industry


Application Cases
Model:VTS75
Separation Material: Biomass → Product: Trichome

Operating Principle
The centrifuge is installed on a movable platform, and the operating touch screen is installed on the left side of the machine. The main transmission component adopts a multi-channel seal and has a leakage indicator port. If there is leakage in the indicator port, it means that the upper seal fails and needs to be replaced as soon as possible. When the operator works, a filter is placed on the inside of the shell, covered with ice and the plants to be extracted, and another filter is placed. The motor drives the transmission assembly, thereby driving the rotating body, and eddy currents are formed inside the housing, thus forming a strong stirring force. In the absence of plant particulate pollution, the trichomes quickly separate from the plant and remain in the water as suspended insoluble solids. Once the slurry mixture of water and trichomes is separated from the remaining biomass, it can be easily filtered, separated, collected, and dried to obtain a high-quality finished-product.

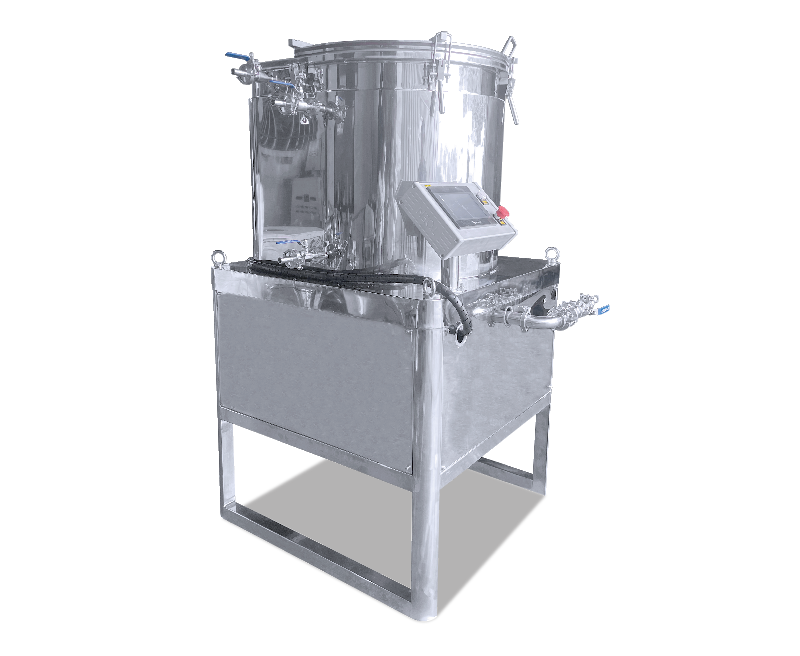

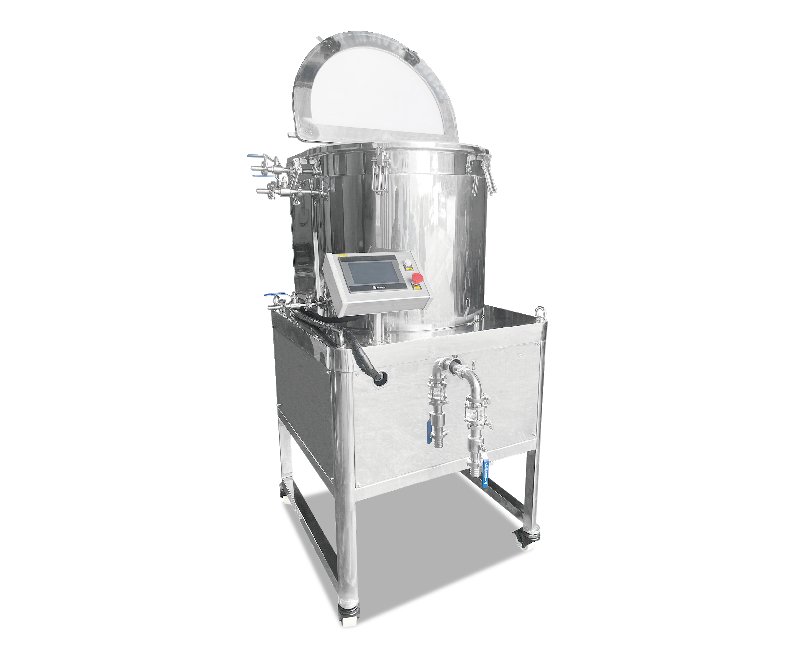

Main Features

Technology
Solvent-free extraction technology.

Cooling
Use the interlayer for cooling.

PLC Touch Screen
PLC touch screen, easy to operate.

Countercurrent Vortex
Generate countercurrent vortex.

Efficient
High efficient.

Material
Food-grade stainless steel.

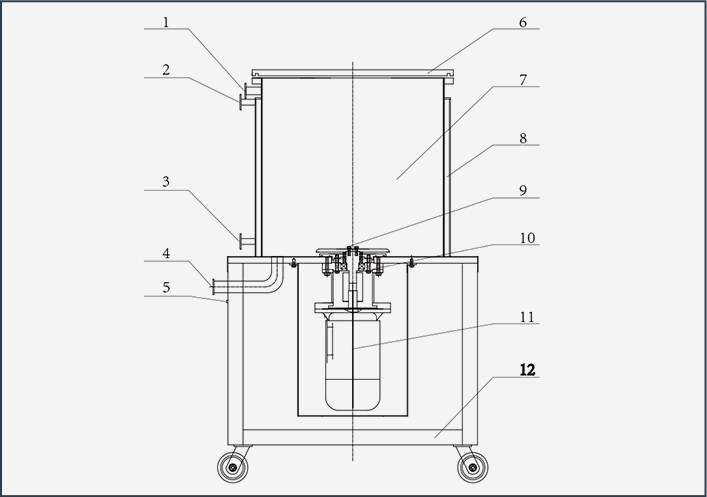

① Liquid Inlet
⑦ Barrel
② Jacket Outlet
⑧ Jacket
③ Jacket Inlet
⑨ Rotating Body
④ Washing Hole
⑩ Transmission Unit
⑤ Seal Failure Indication Port
⑪ Motor
⑥ Flip Cover
⑫ Cart

Product Configurations

① Multiple materials available (304/316L, etc.).
② Optional interface form (tower interface/quick-connect chuck connection/flange connection).
③ Optional motor brand, energy efficiency level, explosion-proof.
④ Optional cabinet explosion-proof, optional inverter, electronic component brand.
⑤ Optional seal material.
⑥ Optional circulating water tank.
| Model | Working Temperature (℃) | Speed(r/min) | Power(kw) | Volume(L) | Jacket Volume(L) | Cooling Area(m2) | Weight(kg) | Dimension(mm) |
| VTS50 | -20~100℃ | 200-800 | 1.1 | 190 | 18 | 0.9 | 350 | 850x850x1400 |
| VTS75 | -20~100℃ | 200-800 | 1.1 | 284 | 28 | 14 | 400 | 950x950x1400 |

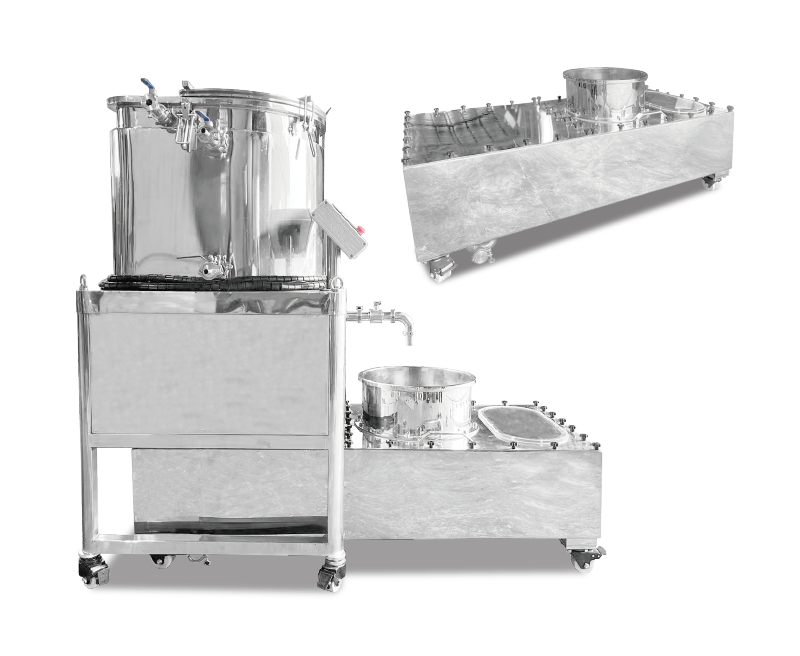

VTS Series Matching Water Tank
The equipment can be equipped with a 340L circulation collection box. The material liquid processed by the centrifuge is discharged, and the material is left behind through the filter bag of the collection box. The water enters the water tank, and the pump is started to move the water back into the centrifuge for reuse.

Main Features

Material
Material: Stainless steel 304.

Clean
Clean type.

Quick Connect Interface
Quick connect interface for quick connection and fixation (equipped with 304 stainless steel quick connect hose).

Configuration
360 degree rotating mobile wheel, matched with filter bag (optional mesh size).

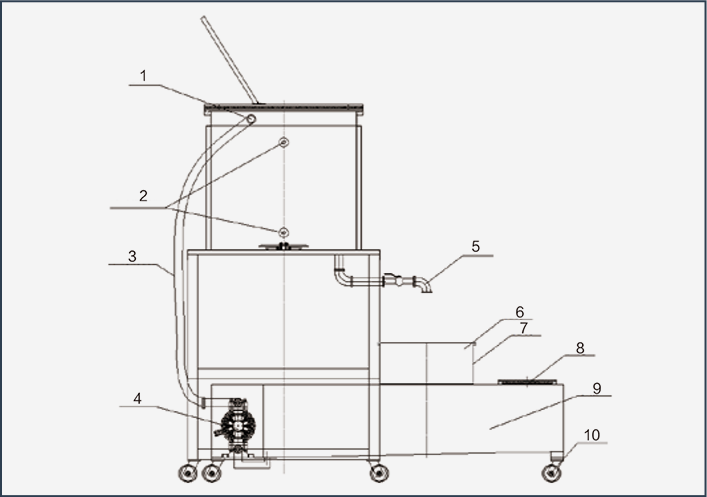

① Liquid Inlet
⑥ Barrel
② Coolant Inlet and Outlet
⑦ Filter Bag
③ Stainless Steel Hose
⑧ Sight Glass
④ Diaphragm Pump
⑨ Water Tank
⑤ Liquid Outlet
⑩ Universal Wheel
| Model | Volume (L) | Materal | Filter Bag Material | Filter Bag Mesh Size | Pump | Max.Flow Rate (L/min) | Weight(kg) | Dimension(mm) |
| Circular Collection Box | 340 | 304 Stainless Steel | Nylon | Optional | Pneumatic Diaphragm Pump | 57 | 90 | 1700X700X750 |
