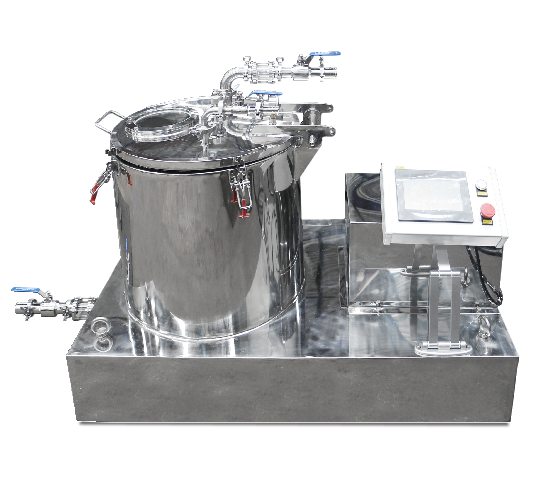

HH Industry Extraction Centrifuge
Product Description
HH series centrifuges are specially designed for plant extraction, with airtight, explosion-proof and clean functions. The HH series centrifuge adopts a flat-bottomed drum structure, with larger volume, higher cleanli-ness, and pollution-free structure design. With simple operation, clean appearance, stable and excellent performance, it is liked by consumers.
Panoramic Glass Window
With Cart
Airtight Operation
Smooth Operation
-50℃~50℃
Application Industry
Application Cases
Model：HH45
Separation Material: Plant Leaves → Product: Extract
Operating Principle
The operator fills the filter bag with crushed plant material and puts it in the machine. Then, add alcohol until the plant material is submerged, and set the program to rotate in both directions to fully extract the effective ingredients in the plant. Open the bottom valve to release the extract, and the plant material is rotated at high speed to remove the liquid as much as possible. Then the alcohol lotion is further processed.

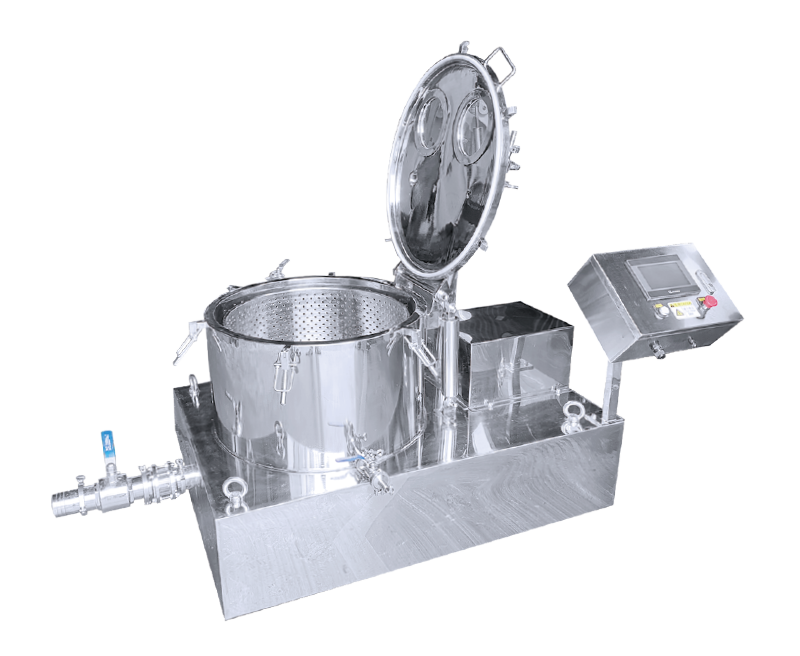

Main Features
The Large Sight Glass
The large sight glass structure allows a clear view of the situation inside the equipment.
Automatic Extraction
Automatic extraction process, the program can set the drum rotation speed, time and cycle times, and can switch to manual control.
Low Temperature
Low temperature acceptable -50 ℃ to 50 ℃.
Adjust
Dehydration speed and time can be set.
Data Display
Temperature display, vacuum pressure display.
Another Optional Configuration
Another optional configuration: oxygen content detection system, cart structure.
Single Person Operation
Zipper type filter bag can be loaded and unloaded quickly, designed for single person operation.

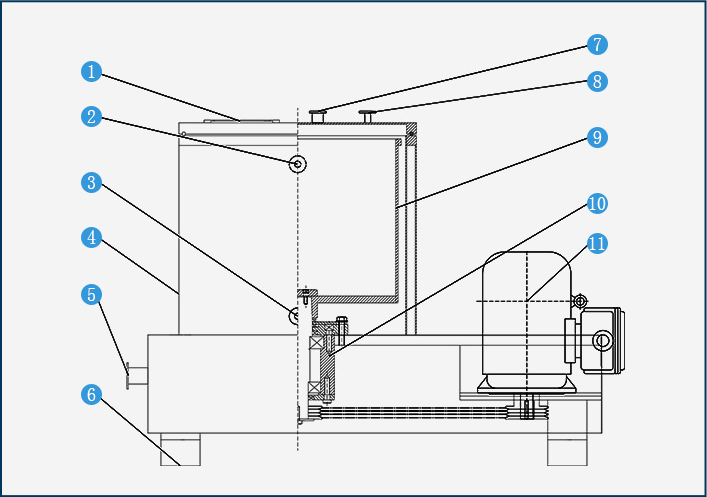

① Observation Window
⑦ Feeding Inlet
② Coolant Outlet
⑧ Washing Hole
③ Coolant Inlet
⑨ Drum Assembly
④ Shell
⑩ Transmission
⑤ Liquid Outlet
⑪ Motor
⑥ Shock Absorber
Product Configurations
① Multiple materials available (304/316L, etc.).
② Optional interface form (tower interface/quick-connect chuck connection/flange connection).
③ Optional motor brand, energy efficiency level, explosion-proof.
④ Optional cabinet explosion-proof, optional inverter, electronic component brand.
⑤ Optional seal material.
⑥ Optional filter bag (polypropylene/polyester/nylon) material, mesh size.
⑦ Optional trolley struction system(HH15~HH115).
⑧ Optional oxygen content detection, nitrogen filling protection system.
| Model | Drum Diameter(mm) | Drum Speed(r/min) | Drum Height(mm) | Max. RCF | Drum Volume(L) | Cooling Volume(L) | Feeding/Batch(kw) | Power of Motor(kw) | Weight(kg) | Dimension(mm) |
| HH15 | 300 | 2000 | 250 | 671 | 15 | 6 | 3 | 1.1 | 240 | 1000x500x650 |
| HH25 | 300 | 2000 | 340 | 671 | 25 | 8 | 5 | 1.5 | 260 | 1000x500x750 |
| HH45 | 450 | 1500 | 290 | 566 | 45 | 16.5 | 10 | 2.2 | 380 | 1200x700x750 |
| HH65 | 450 | 1500 | 400 | 566 | 65 | 21 | 12 | 3 | 410 | 1200x700x850 |
| HH115 | 600 | 1250 | 390 | 564 | 115 | 28 | 23 | 4 | 800 | 1400x900x950 |
| HH145 | 600 | 1250 | 500 | 564 | 145 | 34 | 28 | 5.5 | 820 | 1400x900x1050 |
| HH250 | 800 | 1120 | 490 | 561 | 250 | 45 | 50 | 11 | 1350 | 1800x1100x1200 |
| HH480 | 1000 | 1000 | 590 | 559 | 480 | 65 | 100 | 15 | 2100 | 2100x1350x1350 |
| HH860 | 1250 | 950 | 680 | 630 | 860 | 90 | 170 | 18.5 | 2500 | 2300x1600x1700 |
